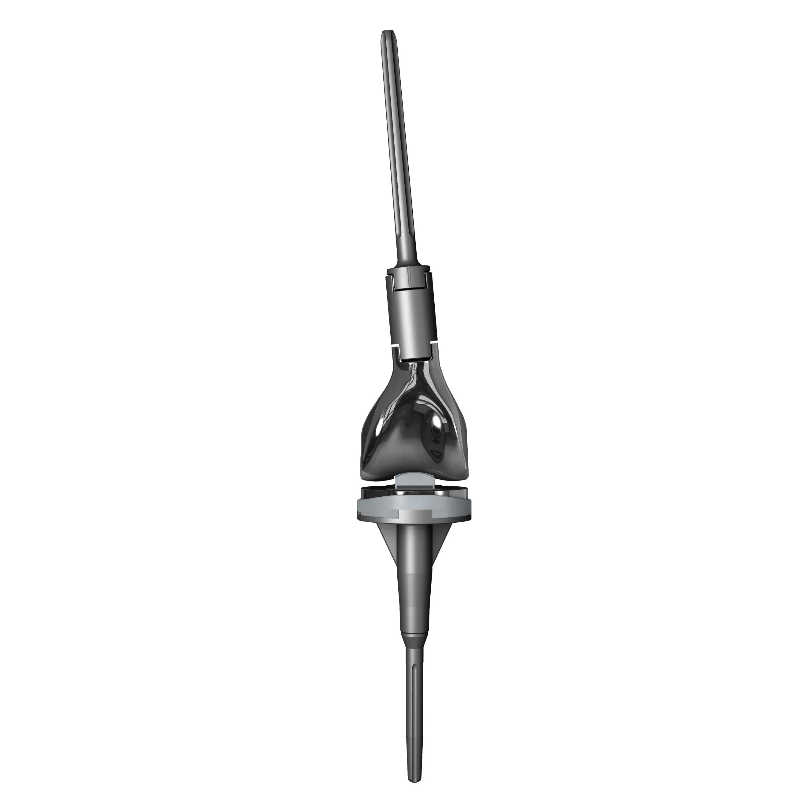

LDK Distal Femur Tumor Knee

1-This prosthesis is used for bone defects in the knee joint caused by tumors, comminuted fractures or other causes.
2-The knee prosthesis has flexion and rotation function to reduce the rotational stress of the broaches and prevent loosening of the prosthesis.
3-Secure fixation is provided between the prosthesis components by means of a conical press-fit locking mechanism.
4-The distal broach of the prosthesis is available in multiple models, such as curved handle and straight handle, to provide the surgeon with the most suitable option.
5-According to the needs of clinicians, various components of artificial joint prostheses can be assembled, including distal femur, proximal tibia, femorotibial joint and total femur.

Main Technical Parameters of the Medullary Stem Extension (XR D03)

Femoral Stem Curved

Image	Thickness	Length
	9	110
	10	125
	11	120
	11	150
	12	150
	13	150
	14	150

Main Technical Parameters of the Diaphysis Extension Segment (XR M01)

Extension

Image	Length(mm)
	30
	40
	50
	60
	70
	80
	100

Main Technical Parameters of Femoral Condyles (XR A301)

Distal Femoral Companent

Image	Size
	1#L
	2#L
	1#R
	2#R



Main Technical Parameters of the Universal Shaft (XR F01)

Mobile Hinge

Mobile Hinge	Size	Diameter
	1-2 Tibial Companent	51
	3-4-5 Tibial Companent	61

Main Technical Parameters of Shaft Pin (XR G02)

Mil

Mil	Size	Transverse diameter
	1-2 Femoral Companent	52
	3 Femoral Companent	64

Main Technical Parameters of Tibial Joint (Modular) (XR C301)

İnsert

İnsert	Size
	1#11mm
	1#13mm
	1#16mm
	2#11mm
	2#13mm
	2#16mm
	3#11mm
	3#13mm
	3#16mm
	4#11mm
	4#13mm
	4#16mm

Main Technical Parameters of Tibial Tray (XR B301)

Tibial Companent

Tibial Companent	Size
	1#
	2#
	3#
	4#
	5#

Main Technical Parameters of the Medullary Stem Extension (XR D02)

Tibial Stem

Stem	Size	Length
	10	90
	11	100
	12	110
	13	120
	14	120
	16	120
	18	120
