LDK Distal Femur and Proximal Tibia Tumor Knee

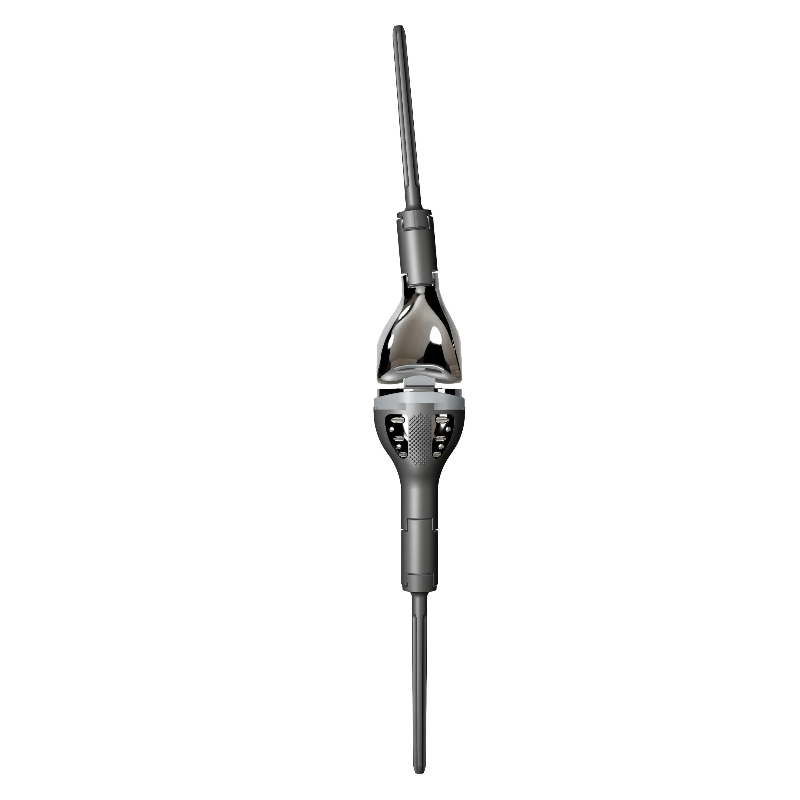

Distal Femur and Proximal Tibia Tumor Prosthesis

1-This prosthesis is used in bone defects caused by tumors, comminuted fractures, or other reasons in the knee joint.
2-The knee prosthesis has flexion and rotation functions to reduce rotational stress on the stems and prevent prosthesis loosening.
3-Secure fixation between prosthesis components is provided through a conical press-fit locking mechanism.
4-The distal stem of the prosthesis is offered in multiple models such as curved stem and straight stem to provide the surgeon with the most suitable option.
5-Various artificial joint prosthesis components can be combined according to clinicians' needs, including distal femur, proximal tibia, femorotibial joint, and total femur.

Main Technical Parameters of Femoral Condylar Unicompartmental DK01

Femoral and Tibial stem Curved

Stem	Thickness	Length
	9	110
	10	125
	11	120
	11	150
	12	150
	13	150
	14	150

Main Technical Parameters of Tibial Stem Unicompartmental DT01

Extension

Extension	Length
	30
	40
	50
	60
	70
	80
	100

Main Technical Parameters of Femoral Condylar (XR A301)

Distal Femoral Condyle

Femoral Condyle	Size
	1#L
	2#L
	1#R
	2#R

Main Technical Parameters of Universal Shaft (XR F01)

Mobile Rotating Hinge

Mobile Hinge	Size	Diameter
	1-2 Tibial Companent	51
	3-4-5 Tibial Companent	61

Main Technical Parameters of Pin (XR G02)

Pin

Pin	Size	Diameter
	1-2 Femoral Companent	52
	3 Femoral Companent	64

Main Technical Parameters of Tibial Joint (Modular) (XR C301)

Insert

Insert	Size
	1#11mm
	1#13mm
	1#16mm
	2#11mm
	2#13mm
	2#16mm

Main Technical Parameters of Tibial Tray (XR B302)

Proximal Tibial Component

Proximal Tibial Component	Size
	1#
	2#



Main Technical Parameters of Medullary Stem Extension (XR D01)

Femoral and Tibial Stem Straight



Stem	Thickness	Length
	9	110
	10	125
	11	120
	12	120
