Short Description
Custom Made is surgery performed by protecting the joint.
Technical Specifications
Lidakang 3D Printing Technology Application Services
Customized production of pelvis, femur, tibia and other special shaped metal trabecular blocks;
CT data required for customized prostheses: Slice thickness < 1.5 cm, pixels < 0.6836, stored in DICOM format;
● CT data of the pelvis and hip joint should include at least the iliac crest and mid-femur, preferably including all four lumbar vertebrae;
● CT data for distal femur tumors should include at least the hip joint;
● CT data for proximal tibia tumors should include at least the ankle;
● CT data for humeral tumors should include the entire humerus;
● Tumor bone osteotomy data should include the entire affected bone and 15 cm from the adjacent joint;

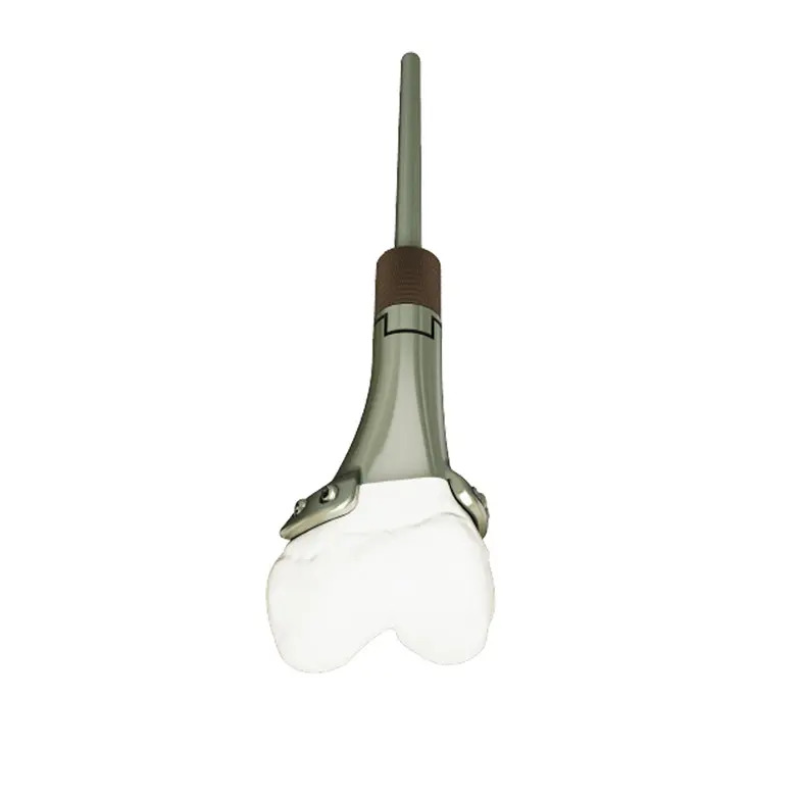

Femoral Condyle Preserved 3D Printed Knee Prosthesis
1. Personalized production is possible.
2. This type of prosthesis has a bone trabecular structure with biomimetic designed porosity.
3. Computer simulation can be used in surgical planning.
4. The patient's own joint and soft tissue function is preserved.

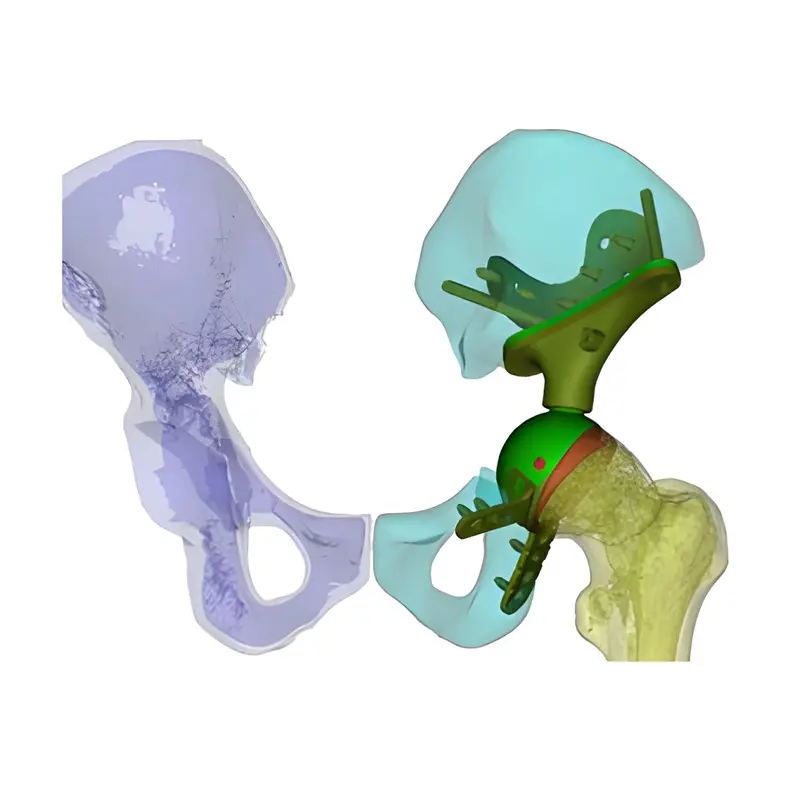

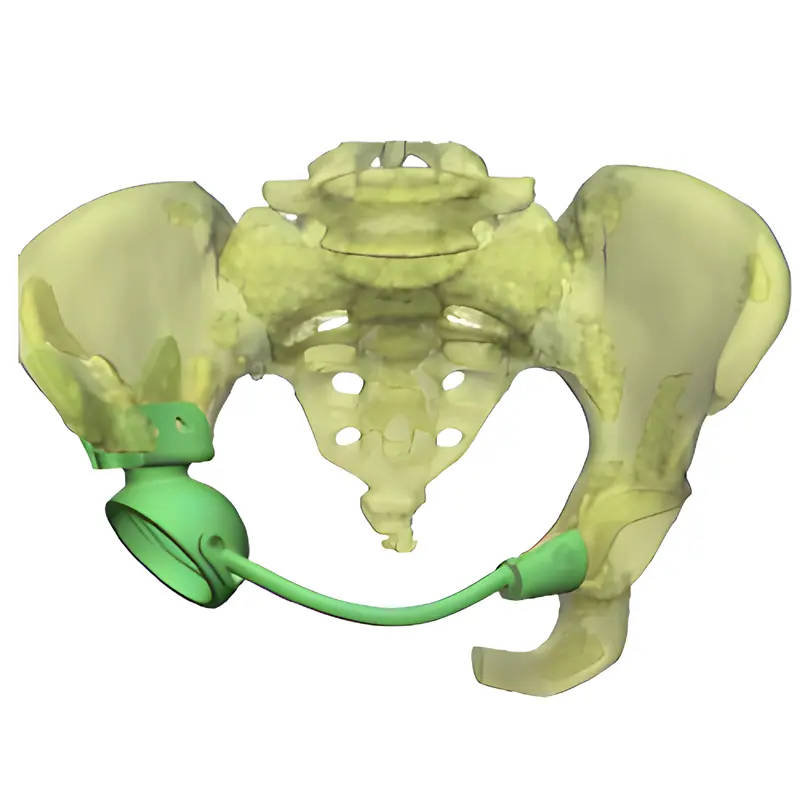

3D Printing System - Pelvis
1. Personalized production is possible.
2. This type of prosthesis has a bone trabecular structure with biomimetic designed porosity.
3. Computer simulation can be used in surgical planning.
4. Morphologic biomimetic structure contributes more to functional reconstruction.

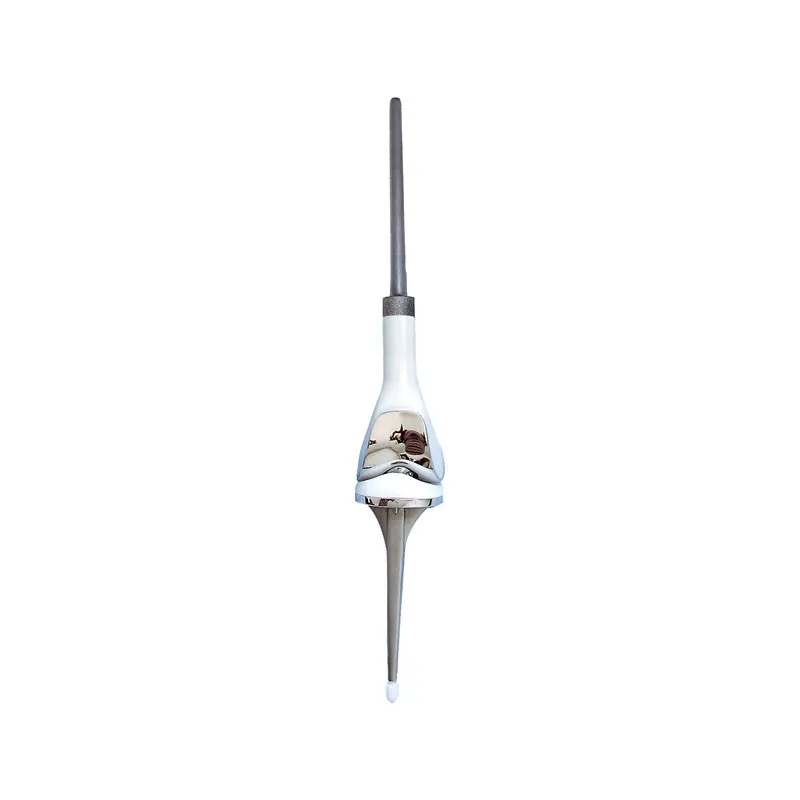

Integrated Knee Replacement (XR P01)
2. It has the flexion and rotation function of the human natural knee joint, alleviates the broach torque, and enables the prosthesis and bone to form an integrated fixation.
3. The joint surface of the femoral and tibial plateau contact parts is designed with a press-fit combination of wear-resistant Co-Cr-Mo alloy and ultra-high molecular weight polyethylene to reduce wear and prolong joint service life.
